Top Gun Commander 335 AC/DC TIG & MMA Welder
In stock
Order today to get it between and
Details

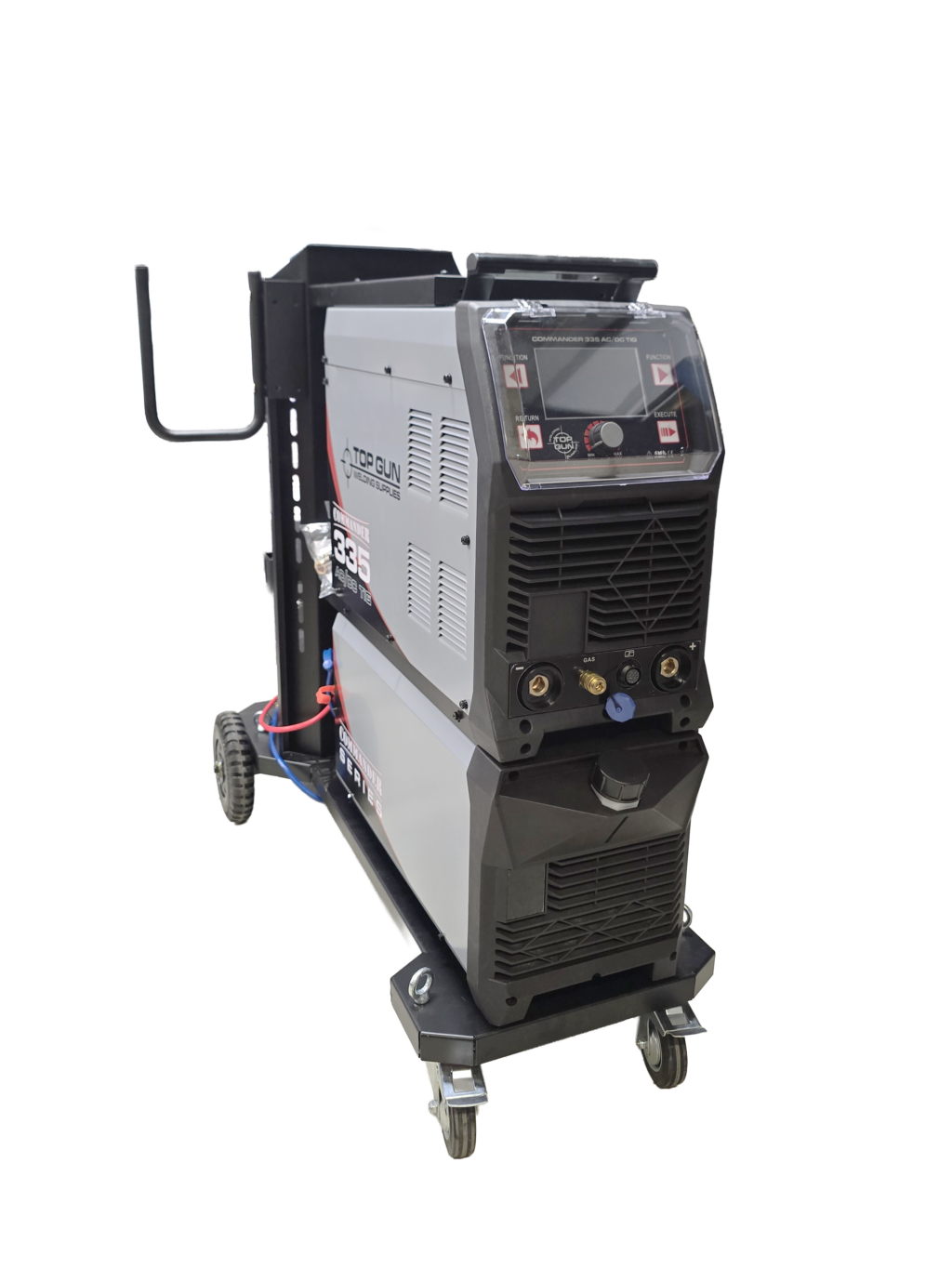

Top Gun Commander 335 AC/DC TIG & MMA Welder
The Top Gun Commander 335 AC/DC is a heavy-duty, 415V three-phase industrial inverter welding machine for AC/DC TIG and MMA/Stick welding. Its full-colour synergic LCD, double-pulse TIG functions and job memory make it suitable for demanding aluminium, stainless and carbon steel fabrication, particularly marine work and production workshops.
Key Features
- AC/DC TIG, double-pulse TIG and MMA Stick processes

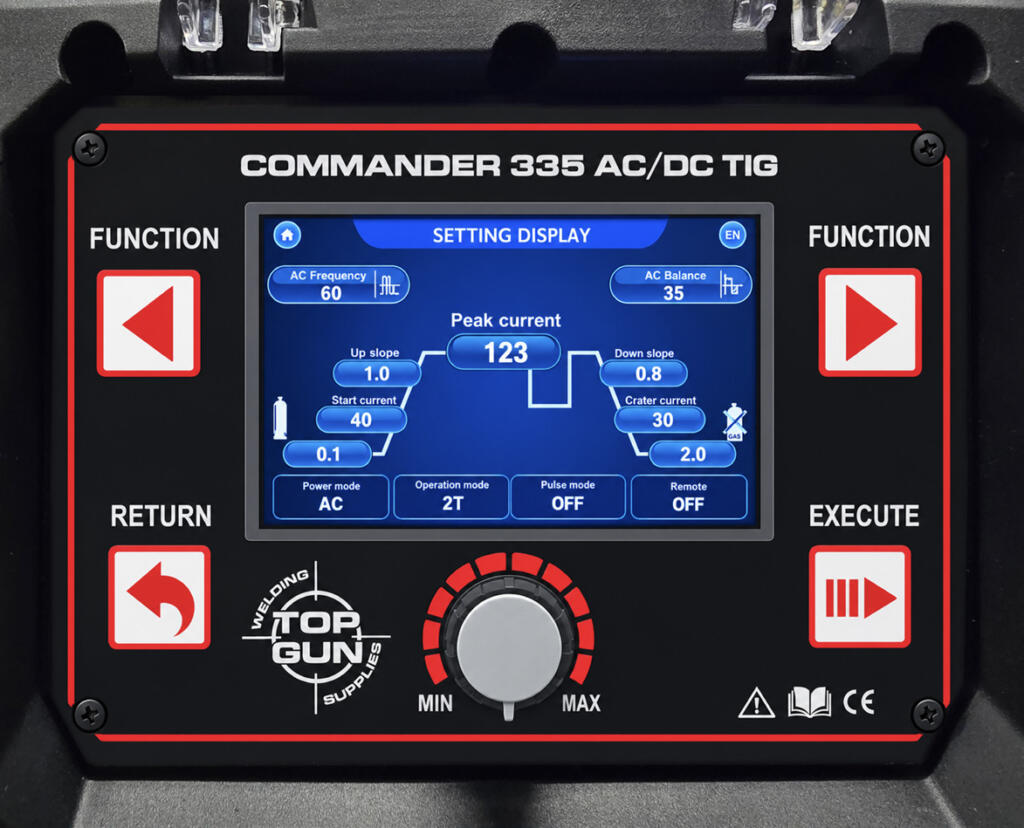

- Full-colour synergic LCD interface with material and thickness-based setup
- Double-pulse technology designed to improve travel speed and reduce heat input
- Multiple memory channels for saved welding jobs
- Job tracking and arc-on time monitoring
- Built-in Voltage Reduction Device (VRD) for MMA safety
- Remote foot pedal and torch control options

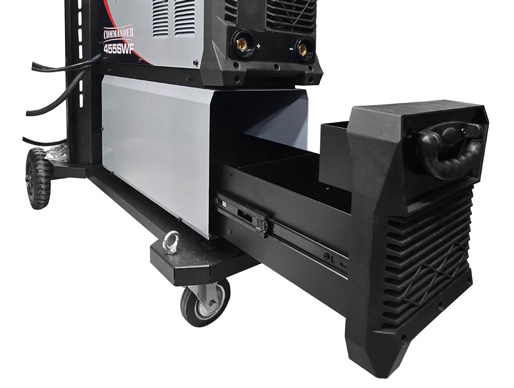

- Integrated trolley-style base, with optional water cooler or tool storage drawer
Technical Specifications
- Model / SKU: TGWTIG335ACDC
- Input: 415V AC, three-phase, 50/60Hz
- Welding processes: AC/DC TIG, double-pulse TIG and MMA Stick
- TIG welding current: 10–320A
- Rated TIG duty cycle at 40°C: 40% at 320A, 60% at 261A, 100% at 202A
- TIG filler rod sizes: 1.6mm, 2.4mm and 3.2mm
- Machine dimensions: 810 × 510 × 800mm (L × W × H)
- Machine weight: 53.8kg
- Package dimensions: 1200 × 680 × 1110mm
- Package weight: 75kg
- Warranty: 5 years, subject to manufacturer terms
What's in the Box
- Commander 335 AC/DC power source
- Operator manual and handpiece
- 8m TIG 18 flexi-head torch with thumbwheel amperage control
- 5m earth lead and heavy-duty clamp
- 4m twist-type electrode holder lead
- Fitted 32A three-phase plug
- Starter TIG 18 consumable kit
- Argon bobbin flowmeter regulator
- 3m gas hose with quick-connect fitting
Why Choose the Commander 335?
For aluminium boatbuilding and commercial marine fabrication, the synergic AC/DC TIG controls help reduce setup time and provide fine control over heat input. The 8m thumbwheel-controlled TIG torch is particularly useful for working around large fabrications.
📖 Manuals & Specifications
DOWNLOAD COMMANDER 335 AC/DC BROCHURE & SPECIFICATIONS
Pricing: Price on application — contact Gun Welding for a quote.
Not sure if this is the right machine? Gun Welding is run by welders, not just salespeople. Ask us before ordering and we’ll help match the machine, torch, gas, consumables and setup to the work you actually do.
- Great for trade, workshop, farm and serious home-use buyers.
- Genuine welding equipment sourced through trusted Australian suppliers.
- Support available for machine setup, welding process choice and consumable selection.
Orders are processed through Gun Welding and shipped Australia-wide. Some products may be dispatched direct from supplier stock to keep delivery fast and pricing sharp.
Warranty and support are provided in accordance with the relevant manufacturer's terms. Keep your order confirmation as proof of purchase.
